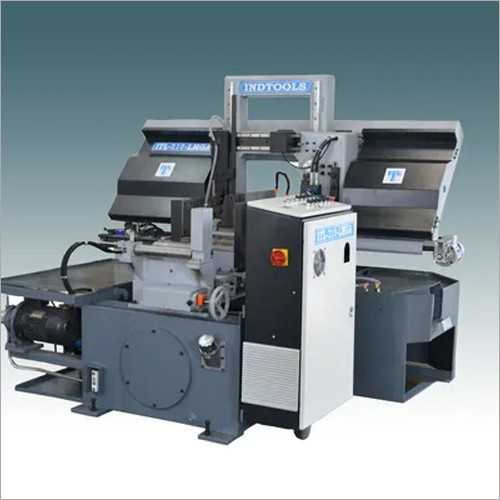

Automatic Bandsaw Machine

Automatic Bandsaw Machine
Automatic Bandsaw Machine
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price
  • 001 INR
Product Description
ITL is a globally renowned organization for cutting solutions. It offers extremely competent, high speed and long-lasting metal cutting band saw machines. Finest grade metal is used to design these machines due to which these horizontal bandsaw machines are corrosion resistant and long lasting.

We offer Semi automatic, automatic and numerically controlled models of cutting edge machines with a wide range from 6½ (150 mm - 1500 mm).

Manual/Semi Automatic Versions (DC/DCTV)
Perfectly engineered manual and semi automatic models of metal cutting band saw machines are available with us. These are widely used for job shop applications to cut small quantities of metals of various kinds and sizes on daily routine daily basis. The metal is manually positioned on the machine for cutting the metal in necessary length of the piece. Blade tension and job clamping process are also done manually. However, all these processes can also be controlled automatically with the inclusion of hydraulic operations at additional cost. Our semi automatic band saw machines (DCTV) are offered with this additional feature.

Specification:

  • DC & DCTV
  • Jumbo Series
  • Being a composite manufacturing group ITL produces fully automatic band saw machines, which are available with strong structure and durable characteristics.
  • The automatic band saw machines are the best choice for bulk production application in which various sizes of metals are to be cut in equal length in a set quantity regularly, without any trouble.
Required length of the cutting piece can be set on the machine and required quantity of the cutting pieces can be set in the PLC programming while cutting the metal. Automatic production of required number of cutting pieces is achieved by loading the bar on the machine without any need of operator’s awareness.
Standard Features (DCA Modules)
  • Automatic height setting for saw frame.
  • Feed control valve with the possibility of infinite variations.
  • Step pulley with 'V' belt.
  • Hydraulic Vice & shuttle mechanism to enable automatic clamping.
  • Hydraulic band tensioning attachment.
  • Electrical / Hydraulically driven swarf conveyor with container.
  • Wire brush to clean blade gullet.
  • Bellows / Sleeves for columns.
  • Machine Lamp.
  • Differential cutting pressure control for simple to complex material cutting.
  • Automatic blade guide adjustment with vice opening.
Optional Features (DCA Models)
  • Manual lubrication system for main columns only.
  • Automated lubrication system for only main columns.
  • Variable speed drive by A. C. Frequency drives with the option of infinite settings.
  • 0.1 mm least count for length setting arrangement.
  • Hydraulic Bundle cutting attachment
  • Length multiplier and piece counter.
  • Floating shuttle vice for forged & uneven surface bars.
  • Tool Box.
Fully Automatic programmable edition (DC Pro) And Numerically Controlled Menu Driven (DC NC).

Numerically controlled menu driven band saw machines offered by ITL are perfectly built for the task of batch production and also for project applications. ITL machines completely meet global quality norms and are offered with following attributes:
  • Automatic speed selection of blade, based upon the type of object to be cut.
  • Automatic positioning of the cutting arm depending upon the dimensions of the object to be cut.
  • Automatic adjustment of the cut length.
  • Programming capacity to program upto 99 types of jobs with different bar dimensions, objects composition, required cut length and No. of pieces to be cut with the main concern of cutting facility.
  • Regular indication of current status of height of object remaining for cutting and feed rate.
  • Auto stopping feature as exhausted blade deflects during cutting, due to wear to prevent taper cutting (optional feature)
Trade Information
  • Supply Ability
  • 50 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Individual Packaging
  • Main Domestic Market
  • All India
